Mini 4-Port 802.3at PoE+1 Port Ethernet Switch 12~48VDC Input + Voltage Booster
Product details
| Management number | 231085080 | Release Date | 2026/06/18 | List Price | US$28.00 | Model Number | 231085080 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

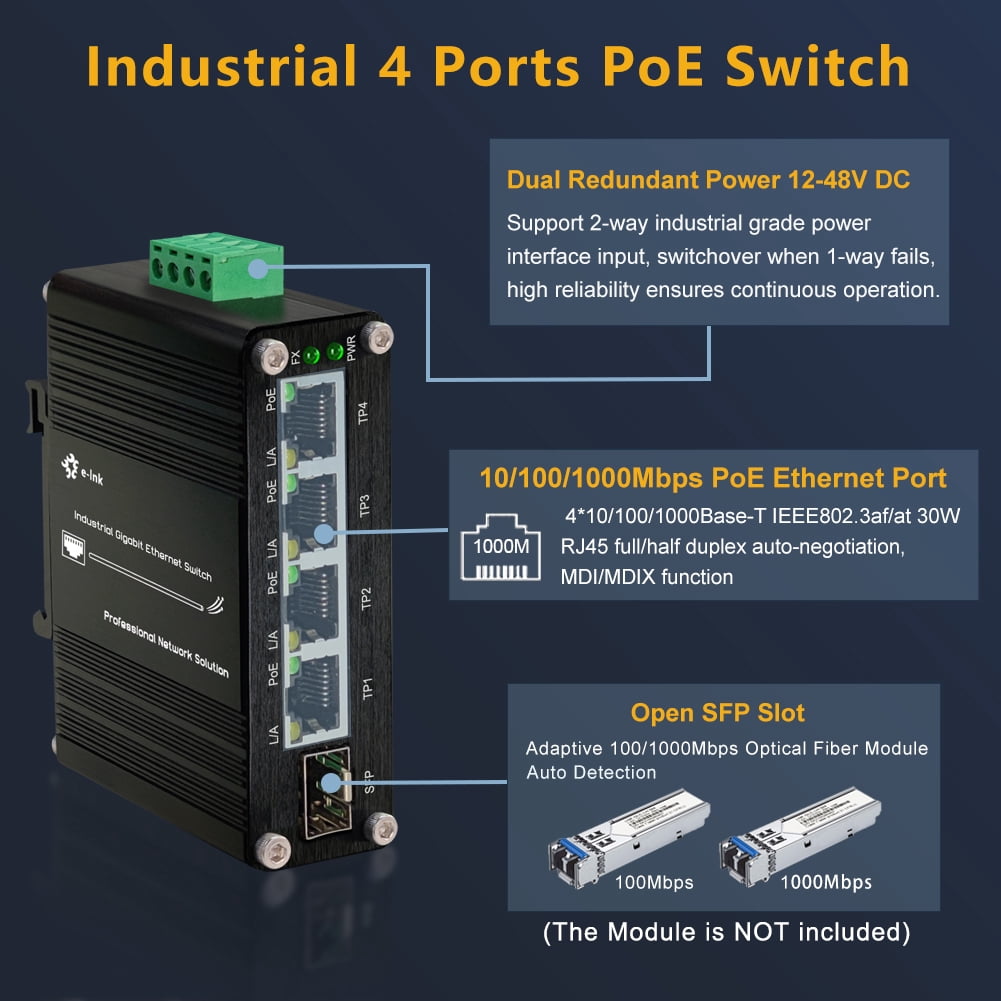

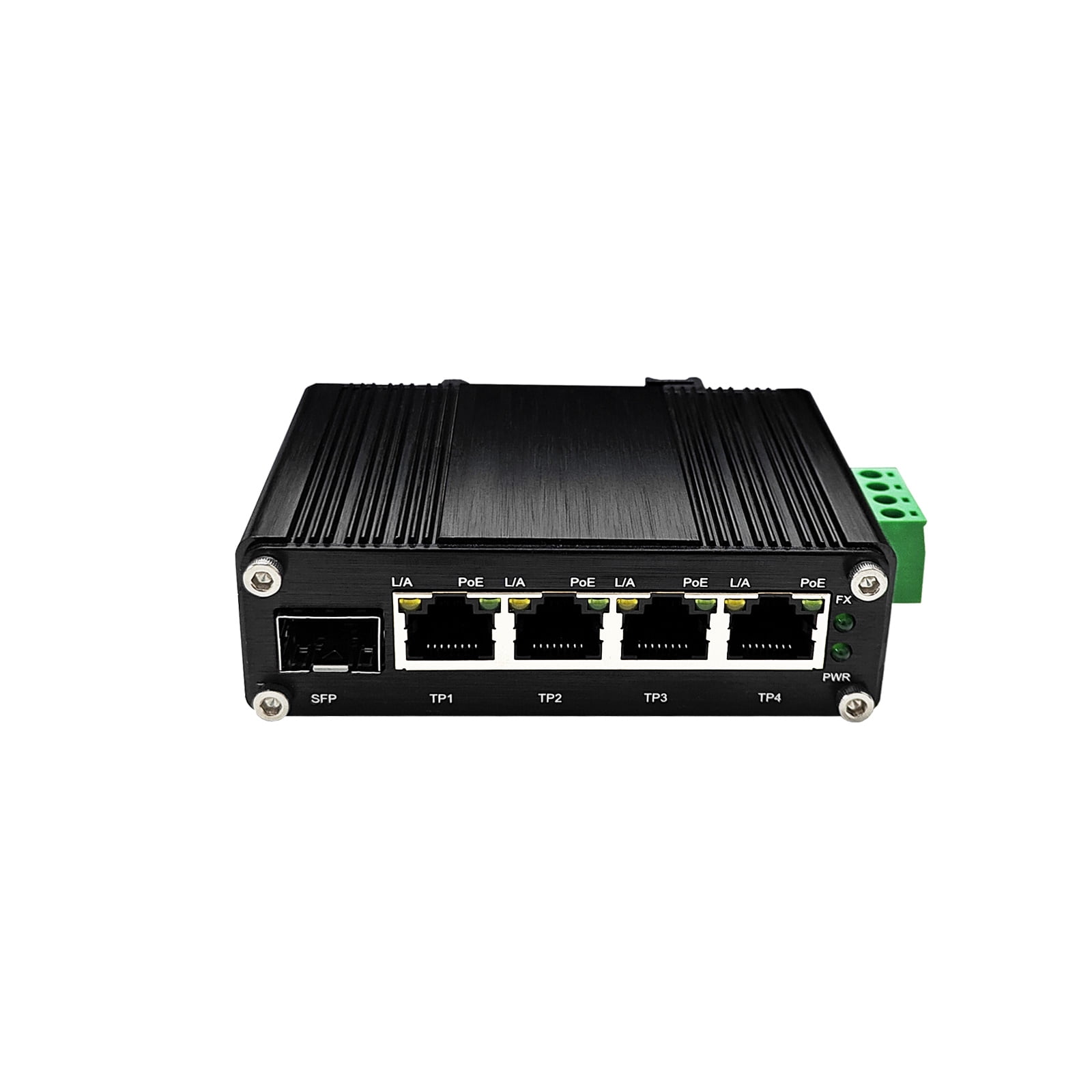

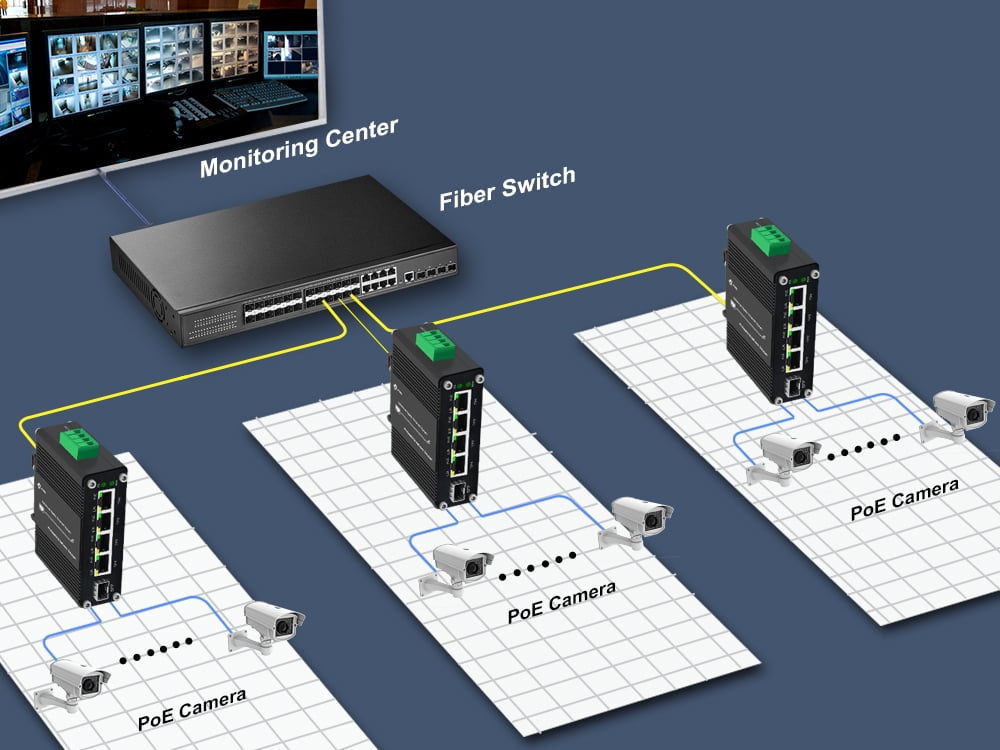

IMC104GP-SFP Series is a Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster. This unmanaged industrial solar power PoE switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
- 100/1000BASE-X SFP slots for SFP type auto detection

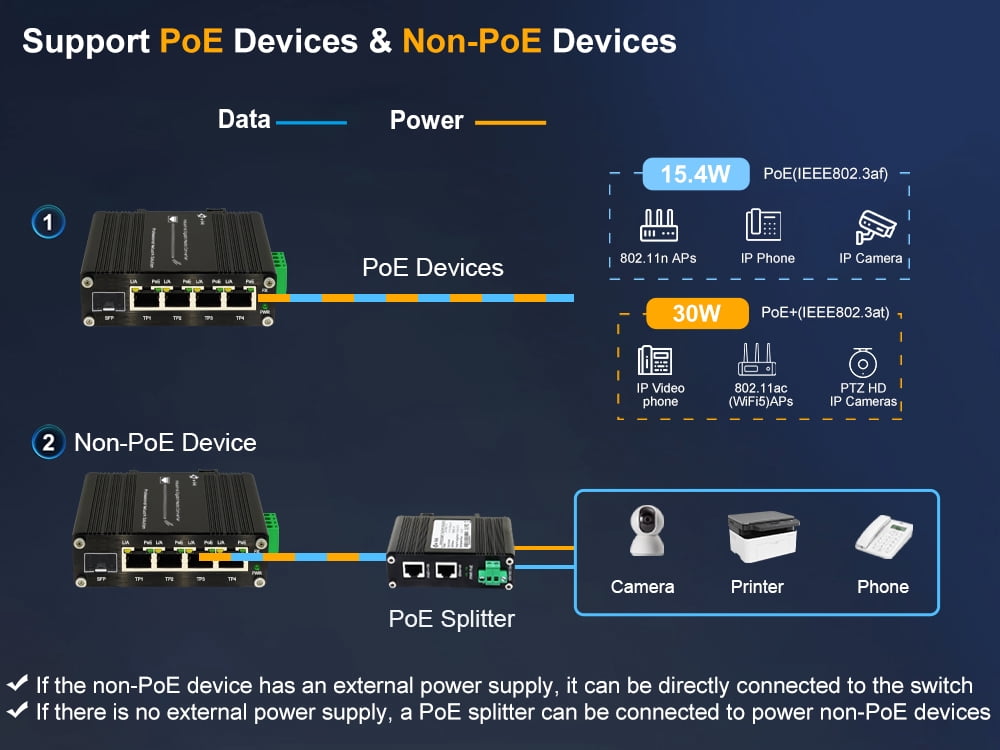

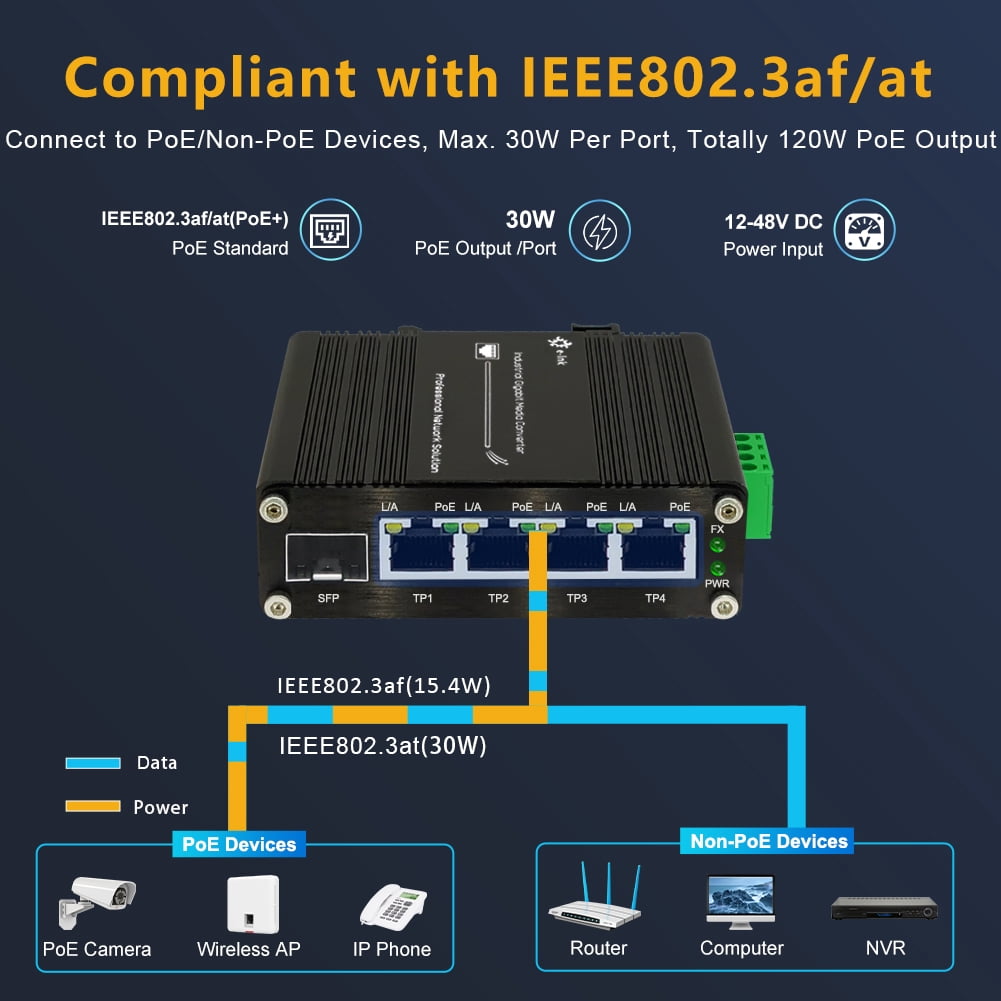

- 4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
- 12~48VDC wide range power input with power booster function
- Supports 802.3x Flow control
- Supports DIN-Rail and Wall-mount installation

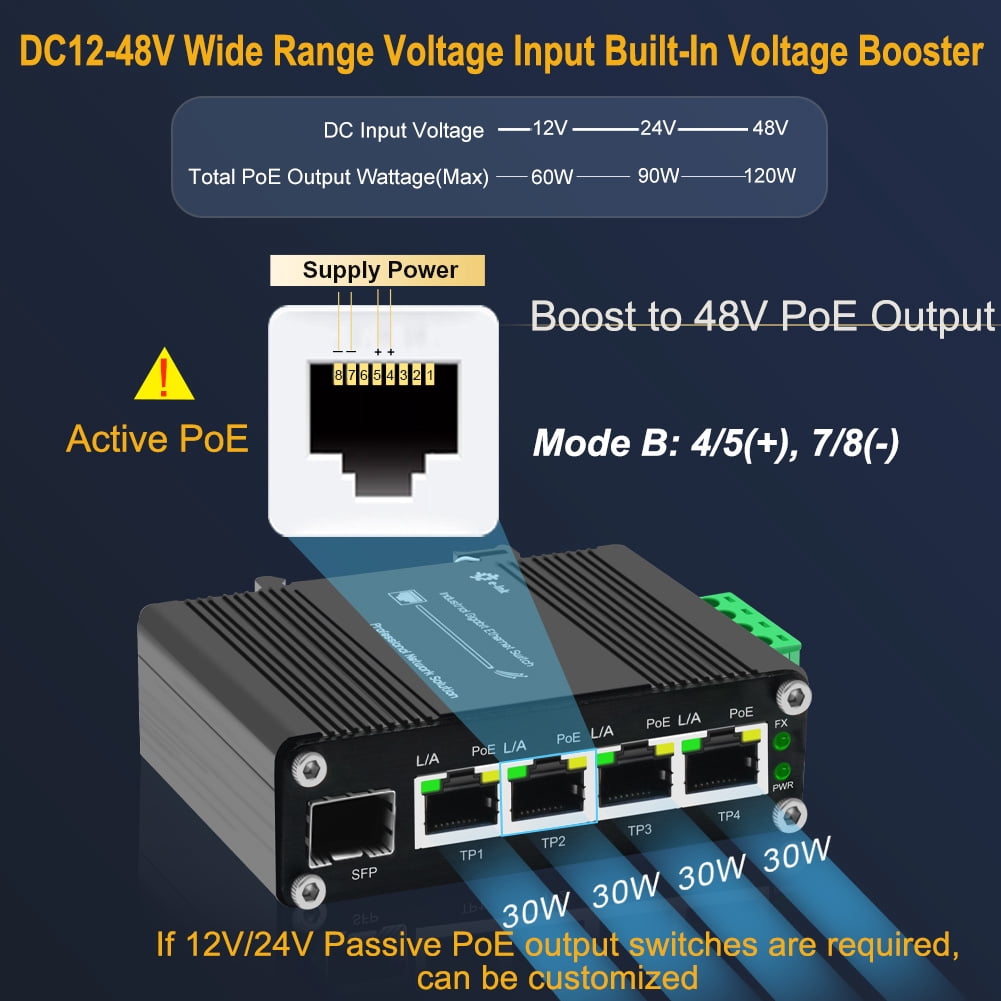

- Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

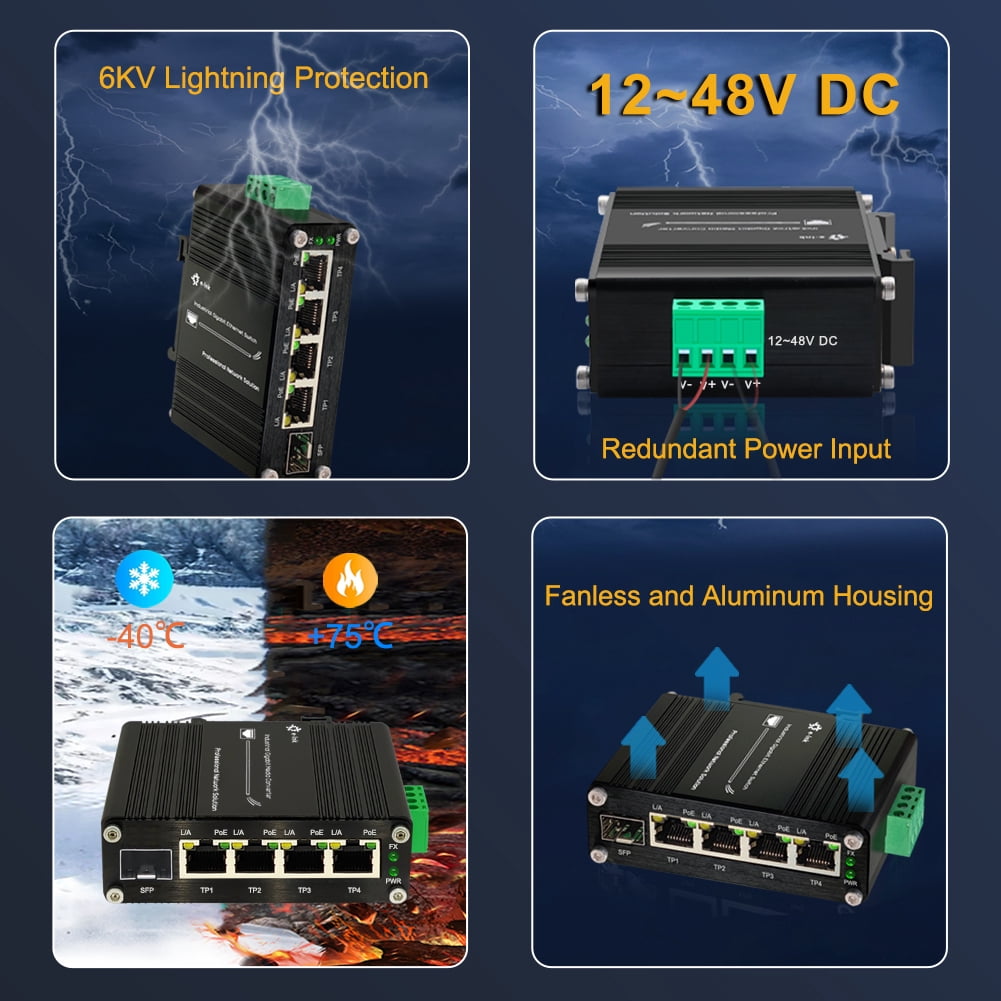

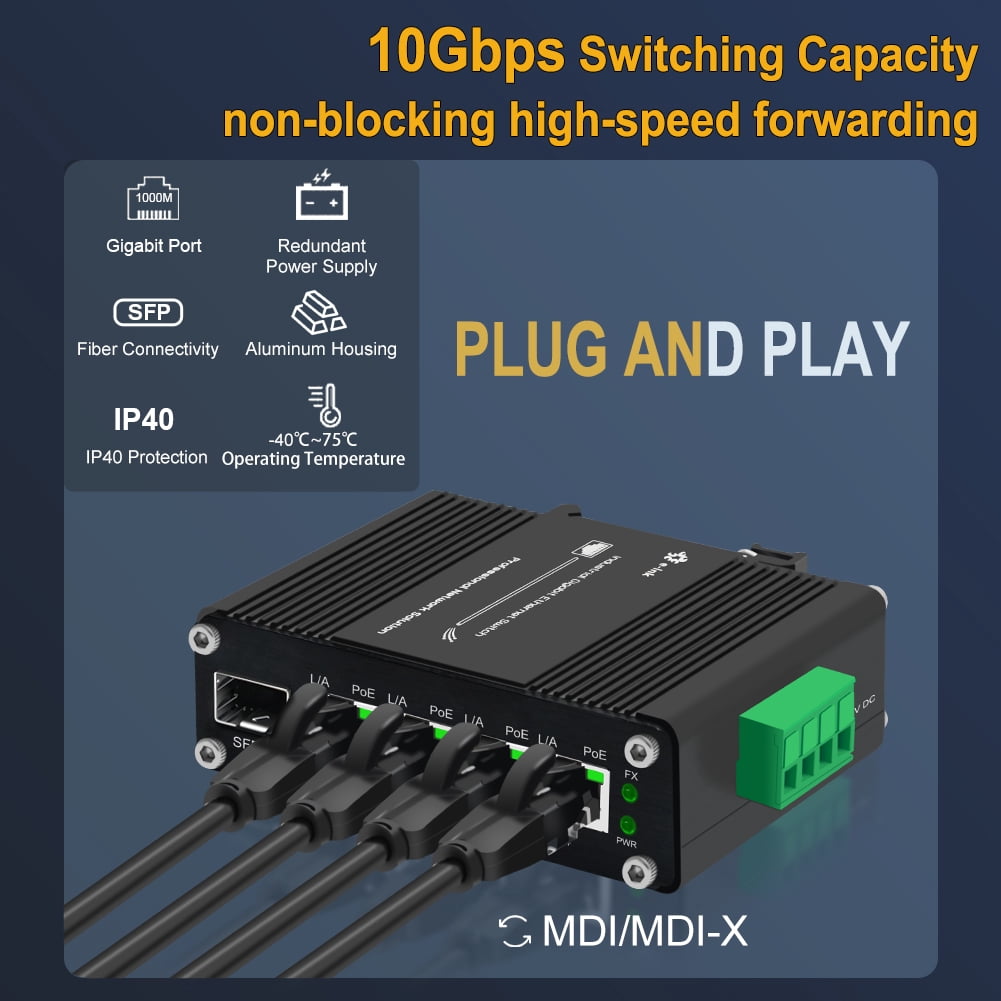

- Industry standard design, dustproof and close design IP40, rugged high-strength metal case
- -40°C to 80°C (-40°F to 176°F) operating temperature
| Brand | e-Link |
|---|---|
| Network switch type | Ethernet Switch, POE Switch, Smart Switch, Unmanaged Switch |
| Number of ports | 5 |
| Form factor | Wall Mount |
| Model name | LNK-IMC104GP-SFP |
| LAN ports | 4 |
| Inputs/Outputs | 4 x 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| Accessories | Quick Start Guide x 1, L-Shaped Wall Mount bracket x 1 |
| Input/output quantity | 4 |
| Height | 2.76 in |
| Weight | 0.55 lb |
| Has written warranty | No |
| Has nrtl listing certification | N |
